Blades in special steel

Shock absorber system
for rejection of unbreakable objects

Electronic control:
automatic
reverse-start-stop overload

1  YEAR GUARANTEE

         BLIK* Monorotor Crusher Mono520
Cutting edge in mm 420x520
Hopper opening in mm 1200 x 500
Motor in KW 7,5
Number of rotors 1
Blade width in mm 340
Blade thickness in mm 24
Number of blades 12
rotation speed in tr/mm 19
Number of hooks per blade 1
L x D X H in mm (cutting block) 1200*650*1000
Weight of macine in kg 500
Blades in easily dismountable special steel
Shock resistant mechanism for discarding difficult objects
Electronic control: automatic reverse-start-stop overload
1 year guarantee

                      CRUSHER-MONOROTOR M420-700 (SPECIALLY DESIGNED FOR COMMUNITIES and RESTAURANTS)

 BLIK* Monorotor Crusher M420-700
Cutting edge in mm 420x700
Hopper opening in mm 1200 x 700
Motor in KW 7,5
Number of rotors 1
Blade width in mm 340
Blade thickness in mm 20
Number of blades 16
rotation speed in tr/mm 19
Number of hooks per blade 1
L x D X H in mm (cutting block) 1685*640*450
Weight of macine in kg 590
Blades in easily dismountable special steel
Shock resistant mechanism for discarding difficult objects
Electronic control: automatic reverse-start-stop overload
1 year guarantee

                              To publish PDF to print on your printer BLIK CRUSHER Mono520 (3 pages) >>

BLIK* Crusher Monorotor M420-530 & M420-700

(SPECIALLY DESIGNED FOR COMMUNITIES and RESTAURANTS)

    It takes up
very little space
when installed
on a skip

Hopper accepts
various types of
products;
even entire bags


The "heat" of the
crusher conforms
to BLIK standards
and can whitstand
all conditions


Very visible and
simple control panel


Reduces waste volume
(up to 9/1, depending
on product). Accepts
all types of containers


Cabinet can be
closed to conceal skip

This crusher was designed for eliminating a variety of materials and waste products which normally occur in reprocessing, trade or services.

It is used for general destruction and for reducing the volume of hard, hollow objects such as bottles, plastic barrels, metal containers and cardboard boxes

If jamming occurs, it automatically goes into reverse for up to 3 times before going into standby or restarting, after getting rid of the jam.

The special, highly resistant, blades can easily be disassembled and fitted onto an exclusive BLiK anti shock system.

It takes up very little space when installed on a skip. The “heat” of the crusher conforms to BLiK standards and can withstand all conditions

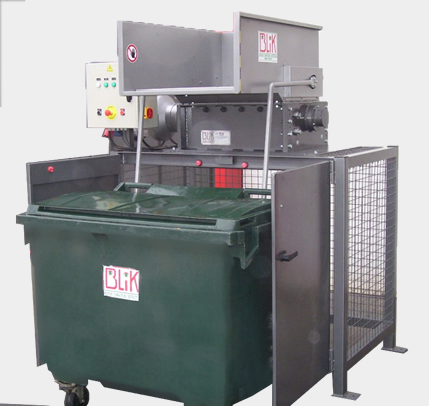

M420-530 on frame special for container 350 litre


                1                  2

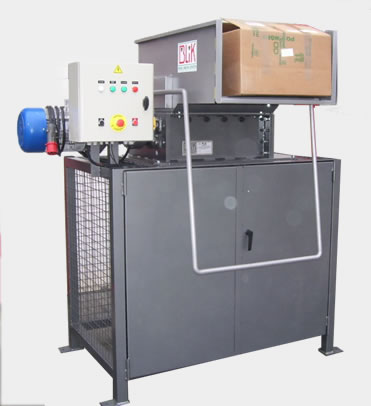

                Tilting Hopper : introduction bags fast, effortlessly and safely
